Maptek Vulcan · 11 · Geological modelling

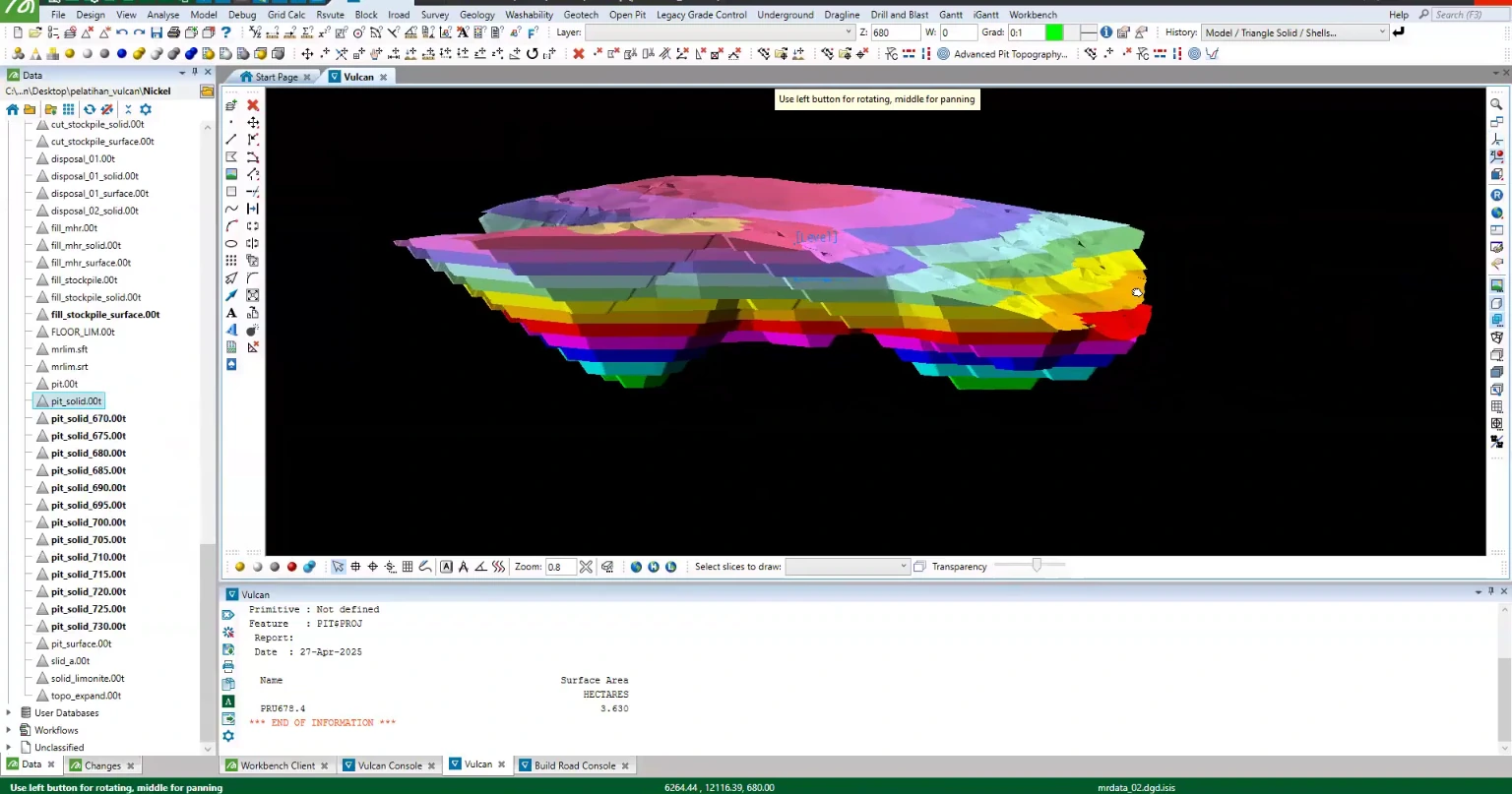

Grade or category display
Stage 11 of the Maptek Vulcan sequence: the model is coloured by an assigned attribute so that spatial changes and domain boundaries can be inspected directly.
Process stage
The model is coloured by an assigned attribute so that spatial changes and domain boundaries can be inspected directly.
Technical reading
The colour distribution is reviewed for unexpected discontinuities, unclassified cells and values that conflict with the geological geometry.
Role in the modelling sequence
Attribute visualisation and model-value quality control.
- Vulcan
- 3D modelling
- Geological workflow
Source record
Original figure caption: Grade or category display.
