Rocscience Slide2 · 01 · Model setup
Building the stratigraphic slope section
Stage 01 of the Rocscience Slide2 sequence: the section geometry and material units are drawn from the interpreted subsurface profile, preserving the principal layer boundaries and slope form.
Process stage
The section geometry and material units are drawn from the interpreted subsurface profile, preserving the principal layer boundaries and slope form.
Technical reading
This provides the geometric and material framework required before groundwater conditions and search settings are added.
Role in the modelling sequence
Slope geometry, stratigraphic boundaries and material-domain setup.
- Slide
- Slope-stability learning
- Geotechnical workflow
Source record

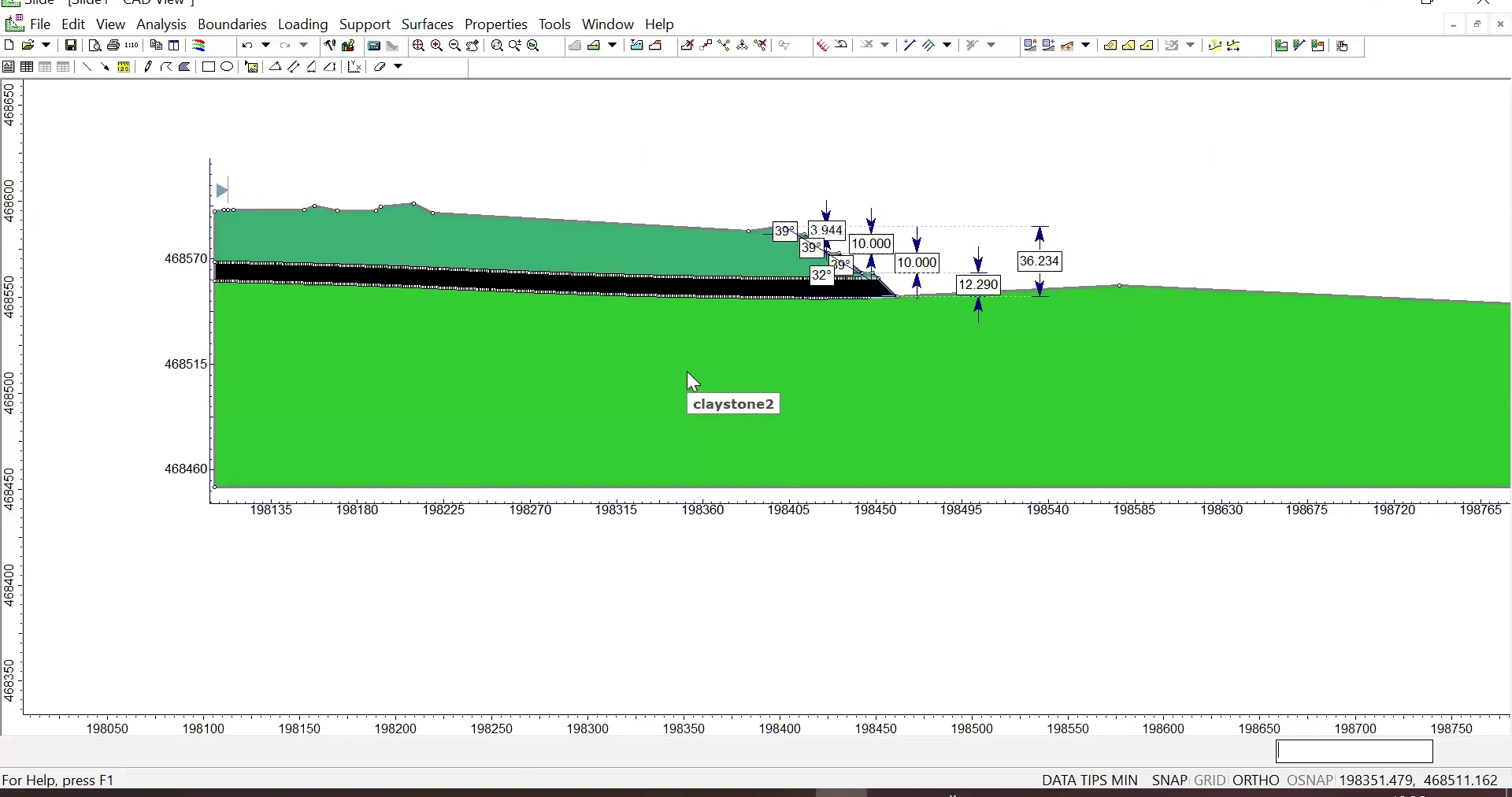

Original figure caption: Slope geometry and material setup.
