Petrel · 48 · Seismic structural interpretation

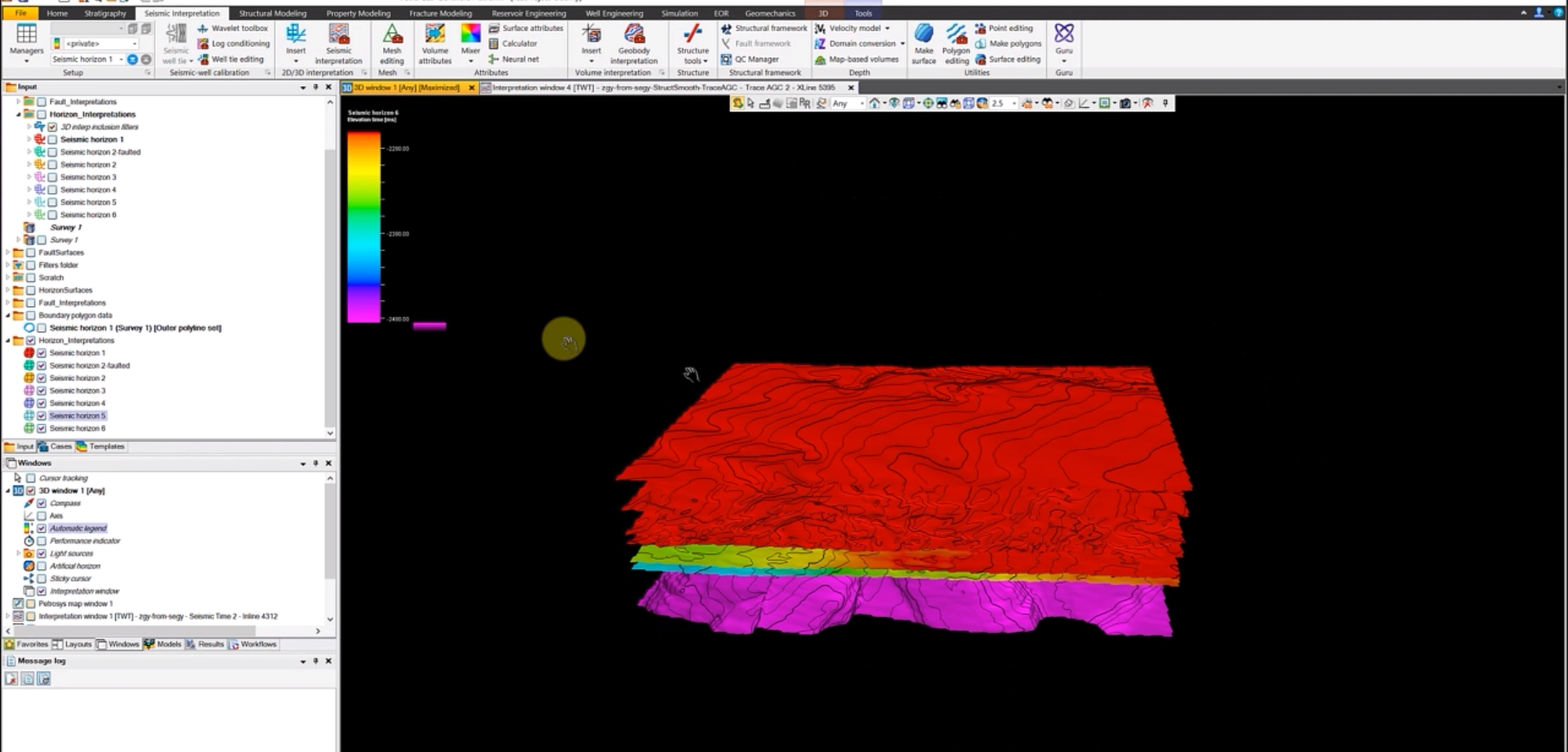

Selected horizon stack emphasising vertical separation
Stage 48 of the Petrel sequence: several interpreted horizon surfaces are stacked and contoured to review stratigraphic order, vertical separation and local surface shape.
Process stage
Several interpreted horizon surfaces are stacked and contoured to review stratigraphic order, vertical separation and local surface shape.
Technical reading
The stack is checked for crossing horizons, unrealistic spacing and smoothing artefacts before grid construction.
Role in the modelling sequence
Multi-horizon stacking, contour review and stratigraphic consistency.
- Petrel
- Seismic interpretation
- Structural framework QC
Source record
Original figure caption: Selected horizon stack emphasising vertical separation.
