Petrel · 33 · Seismic structural interpretation

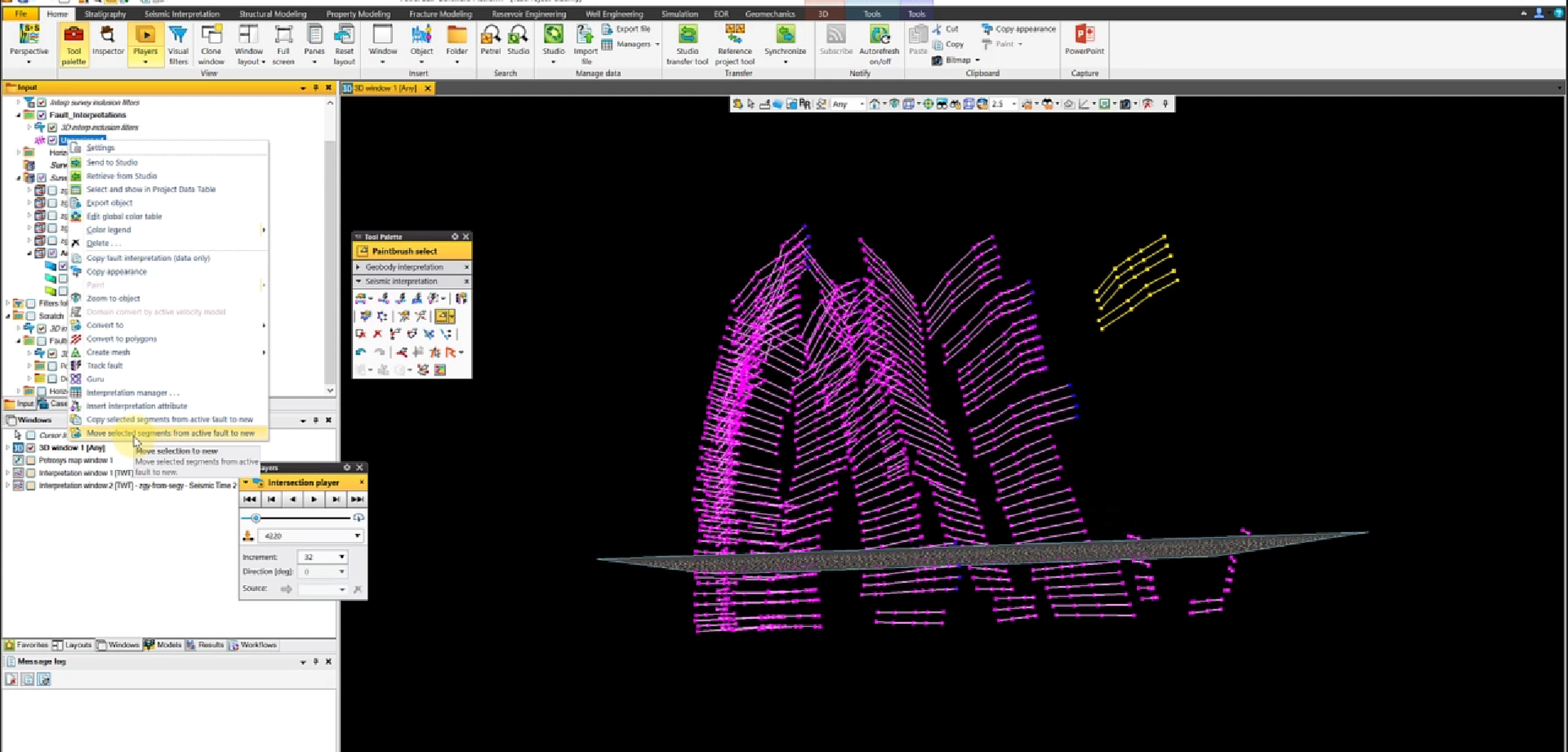

Fault-stick subset isolated for structural review
Stage 33 of the Petrel sequence: multiple fault-stick sets are assembled in three dimensions, revealing segmentation, overlap and the structural density of the interpreted network.
Process stage
Multiple fault-stick sets are assembled in three dimensions, revealing segmentation, overlap and the structural density of the interpreted network.
Technical reading
Subsets are isolated to resolve conflicting sticks and establish a coherent fault hierarchy before surface generation.
Role in the modelling sequence
Three-dimensional fault-network interpretation and segmentation review.
- Petrel
- Seismic interpretation
- Structural framework QC
Source record
Original figure caption: Fault-stick subset isolated for structural review.
